CDN Custom Headers: Types, Limits and Common Uses

REFERENCE

Custom header types, limits and common uses in one place: the two header types (request to origin, response to visitor), the per-location limits, and the headers most configurations use, from Host overrides to CORS and security headers.

Custom headers let a CDN resource change what your origin receives and what your visitors receive, without changing either system. They live on locations, the path-based routing rules of the Origins tab, so every rule applies to one URL prefix; the catch-all / covers the whole resource. This page lists the types, the limits, and the headers most configurations use.

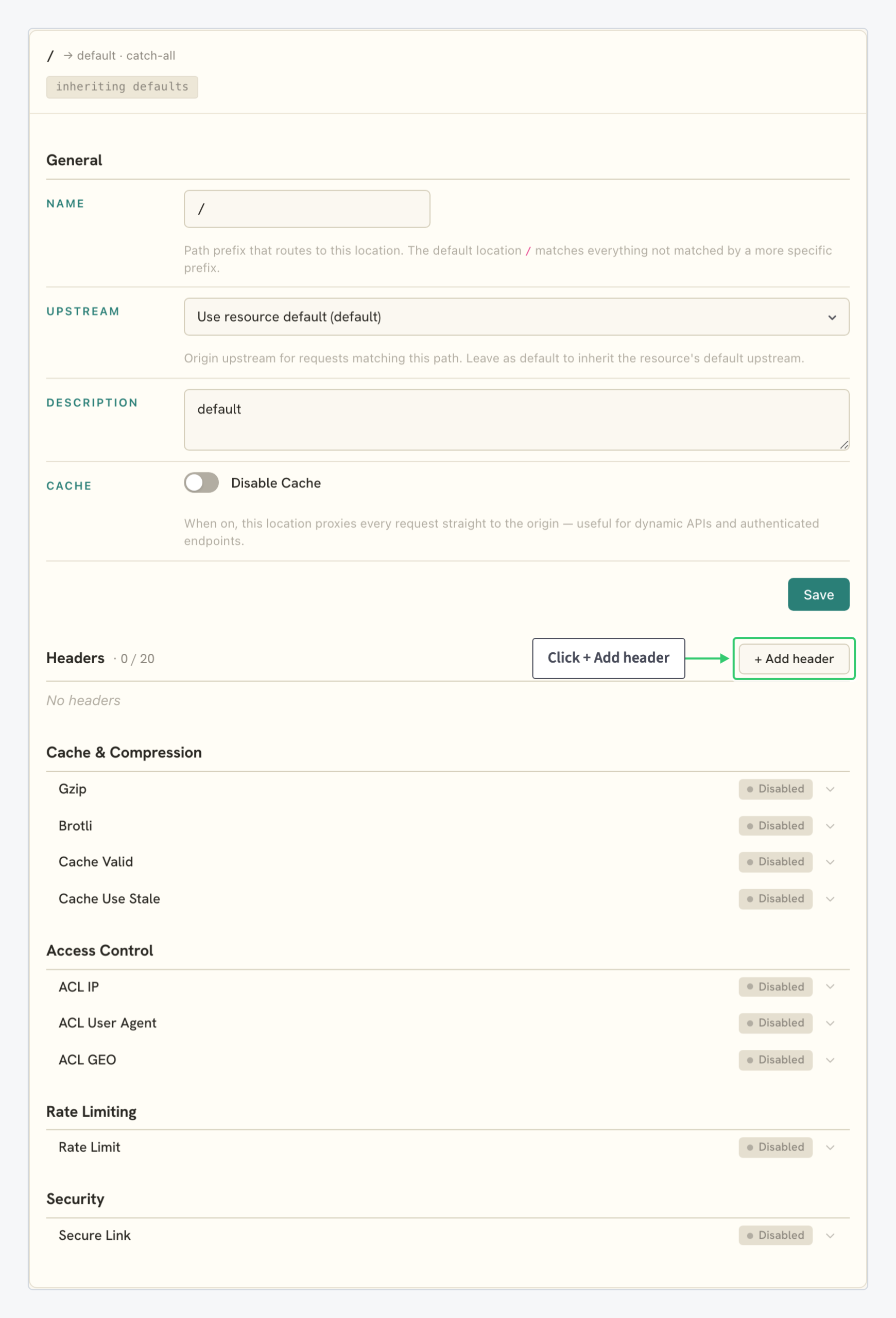

Expanded location card with the Headers group and the + Add header button

Header Types

You give each header a type, a name and a value in the Add a header dialog. The type decides the direction:

Type	Direction	Use it for
`proxy_set_header`	Request the CDN sends to your origin	A hostname the origin expects, a tag for your logs, a value your backend checks
`add_header`	Response the CDN sends to the visitor	CORS, browser caching hints, security headers

Open the dialog with the + Add header button of a location card:

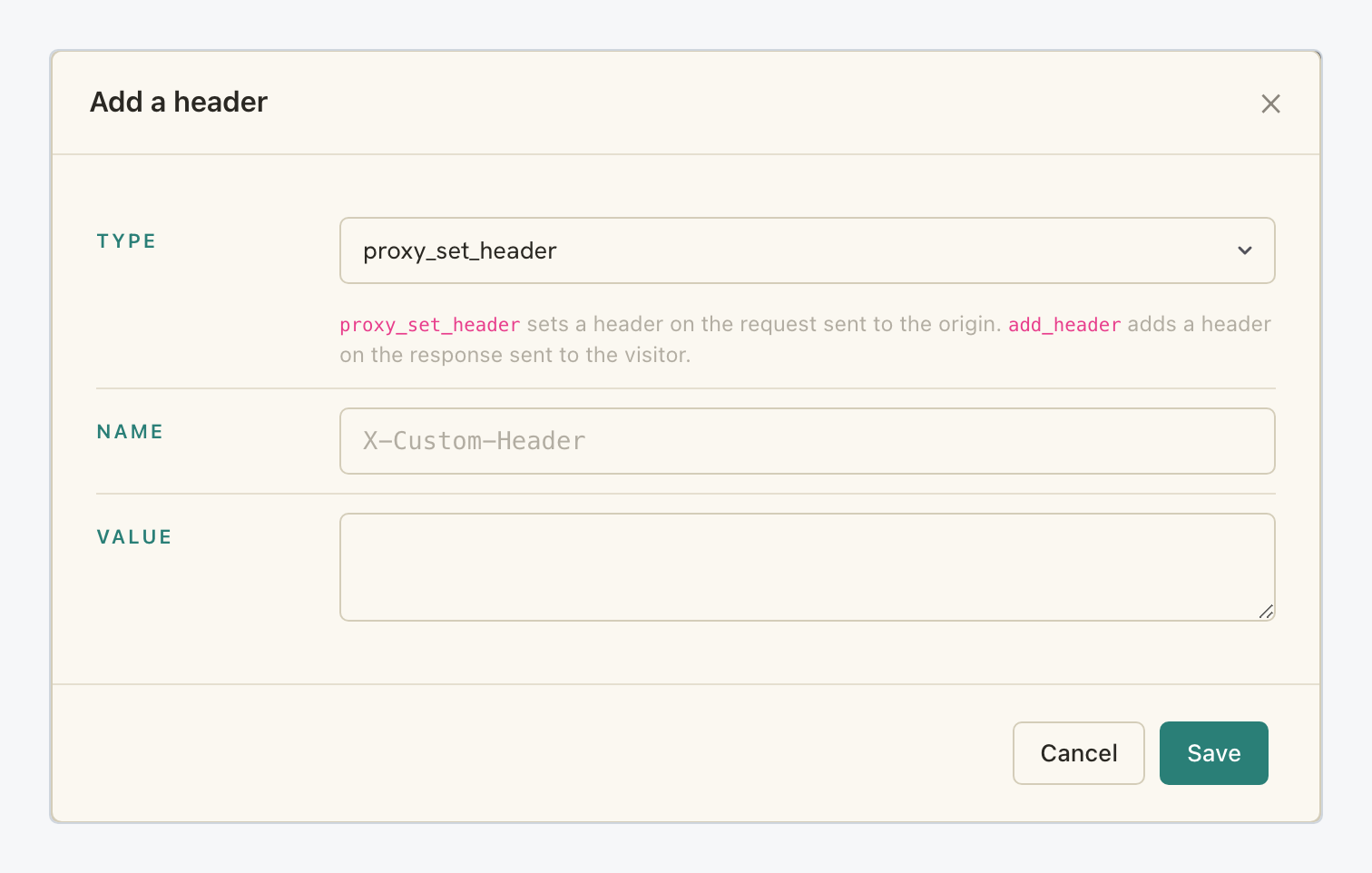

Add a header dialog with the type select, the name field and its placeholder, and the value field

Limits and Behaviour

Property	Value
Scope	Per location. A rule on `/api/` never applies to `/images/`; more specific prefixes take precedence over the catch-all `/`.
Count	Up to 20 headers per location, both types combined.
Name and value	Free-form text; any header name your origin or your visitors’ browsers understand.
Applying	Save each header from its own dialog; remove one with the × on its row.

Request Headers to the Origin (proxy_set_header)

Header	What it does
`Host`	Names the site the origin should serve when it expects a different hostname than your resource: shared hosting, storage buckets, staging origins. The walkthrough is in Fetch Content from Your Origin with a Different Host Header.
`X-CDN-Tag`	Marks CDN traffic in your origin’s logs and firewall rules, under any custom name you choose, so you can tell edge fetches from direct hits.
`Authorization`	Carries a static secret your origin checks, so the origin answers CDN fetches and rejects direct requests. Any custom token header works the same way; rotate the value like any credential.

Response Headers to the Visitor (add_header)

Header	What it does
`Access-Control-Allow-Origin`	Lets pages on another domain consume your content (fonts, scripts, API responses); its value is the allowed page origin, such as `https://app.example.com`. Use it with `Access-Control-Allow-Methods`, which names the allowed HTTP methods, and `Access-Control-Allow-Headers`, which names the request headers a cross-origin page may send. The full walkthrough is in Manage Response Headers and CORS on Your CDN.
`Cache-Control`	Tells browsers how long to keep their own copy. This is the visitor side only: what the CDN itself caches is set by Cache Valid, covered in Control How Your CDN Caches Content.
`X-Frame-Options`	Stops other sites from embedding your pages in frames; `SAMEORIGIN` allows your own embedding, `DENY` allows none.
`X-Content-Type-Options`	`nosniff` stops browsers from guessing content types, closing a class of content-injection issues.
`Referrer-Policy`	Controls how much of the current URL travels in the `Referer` header when visitors follow links away from your pages.
`Strict-Transport-Security`	Tells browsers to reach the hostname over HTTPS only. Enable it only after every path on the hostname serves HTTPS.

The two tables are conventions, not a closed list: the fields are free-form, so any header your origin or your visitors’ browsers understand is valid.
